Kebidu Bluetooth MP3 odtwarzacz pokładzie dekoder 3.5mm AUX moduł Radio FM TF USB odbiornik samochodowy zestaw Audio dla IPhone

32962050058

Nowy produkt

47,88 zł

Całkowita ocena Całkowita ocena:

0 1 2 3 4
4,83/5 - 6 ocen

Zobacz oceny
0 1 2 3 4 5
0 1 2 3 0 1
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

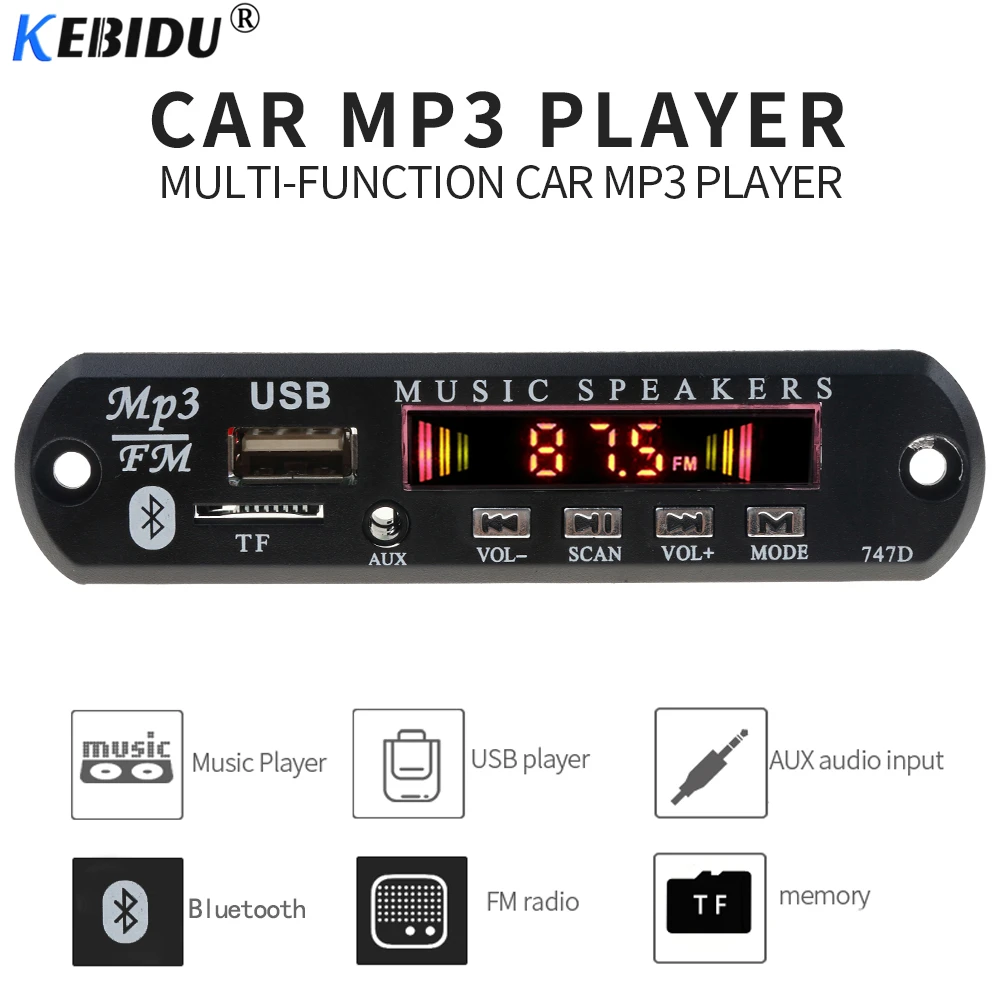

Music MP3 WMA Decoder Board Bluetooth 12V MP3 WMA Decoder Board Audio Module USB TF Radio For Car accessories

Feature:

* Support signal switch directly. Support USB, TF
* Support bluetooth (Bluetooth3.0 EDR) (after been paired with mobile phones can realize wireless music play)
* Support USB / TF / Bluetooth/FM / LINE switch. MP3 / WMA, WAV lossless music decoding chip.
* Support USB / TF card switch, PREV, NEXT, fast forward, fast rewind, volume, EQ, play / pause, stop, single repeat, mute, shutdown and direct election.
* Support Bluetoot PREV, NEXT, volume, EQ, play/pause, mute, turn it off.
* Support FAT16, FAT32 file system. Support for MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.Support 32-320 KBPS MP3 songs.
* Support power off memory function: memory play songs and volume before power off.
Note:
Non-smart phones (android) have to enter the password - 0000

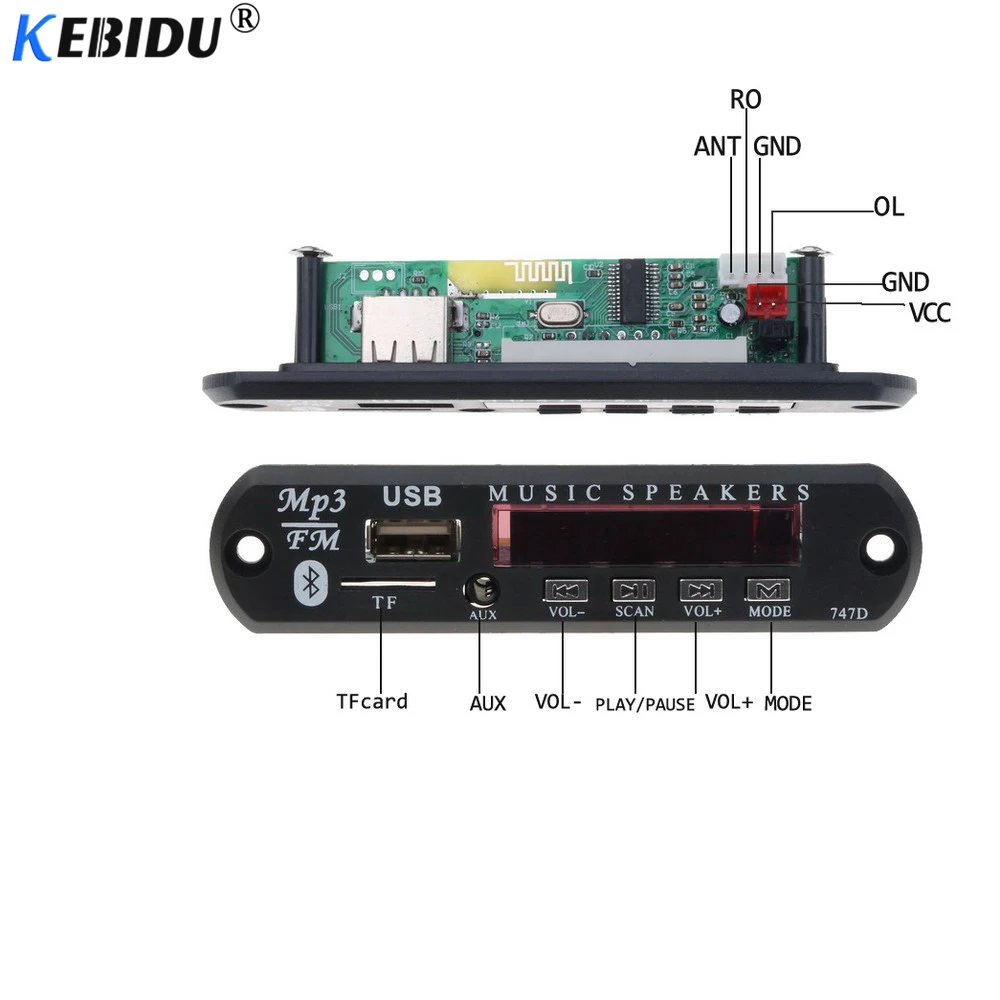

Decoding board play mode instruction:
Decoding board in the absence of memory card or U disk,boot default to /\'/\'audio input/\'/\' mode,the screen display LINE
Press /\'/\'MODE/\'/\' key on the panel or the remote control switch to bluetooth MODE,the screen shows /\'/\'BLUE/\'/\',can open bluetooth search contion at this time
Press /\'/\'MODE/\'/\' key on the panel or the remote control switch to radio MODE,the screen display FM radio frequency,long press /\'/\'PLAY/\'/\' button automatic searching channel
Press /\'/\'MODE/\'/\' key on the panel or the remote control switch to the U disk or memory card /\'/\'play MODE/\'/\',the screen displays the time schedule of the song

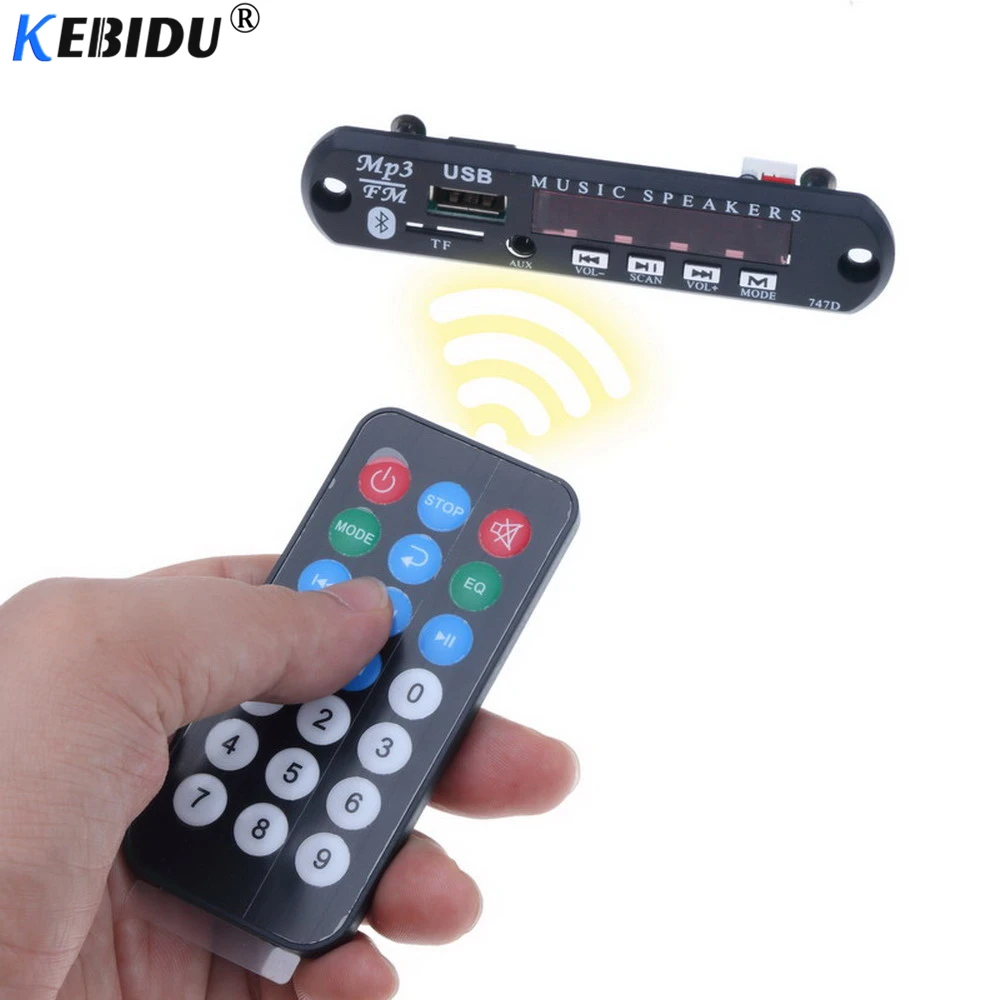

The remote control instruction:
1. POWER: STANDBY button cannot switch.
2. MODE: TF card and U disk: switching sequence for USB→TF→Bluetooth→FM→AUX;
Only U disk: switching sequence for USB→Bluetooth→FM→AUX;
Only the TF card: switching sequence for TF→Bluetooth→FM→AUX;
There is no USB and TF card: switching sequence for FM→AUX→Bluetooth.
3. PREV: In USB/TF / Bluetooth MODE,short press for PREV;
In the USB / SD MODE, long press for fast rewind;In FM MODE, short press for last channel, long press for scan search last channel.
NEXT: In USB / TF/Bluetooth MODE,short press for NEXT;
In USB / TF MODE,long press for fast forward;
In FM MODE,short press for next channel,long press for scan search the next channel.
4. VOL + : short / long press for music.VOL - : short/long press for music.
5. REP:In USB / TF MODE,is the switch key between single repeat and whole cycle when play music,boot for all cycle.
6. STOP: In the USB / TF MODE,short press to STOP the music play.
7. MUTE: MUTE,press for MUTE,press again for relieve(also can relieve by VOL- /VOL+).
8. EQ: Acoustic field MODE.The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL
9. PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY / PAUSE;In the FM MODE,long press for searching all channels and save.
Specification:
Installation pitch: 92 mm wide
Installation hole:83 x 20 x 38 mm
Overall dimensions: 107 x 25 x 38 mm
(W x H x D)
Inputvoltage: 5-12V

1 X decoding board
1 X remote controls((Not Bring the Battery)

No retail box will be included, but we/\'ll pack well before shipping.
