Description:

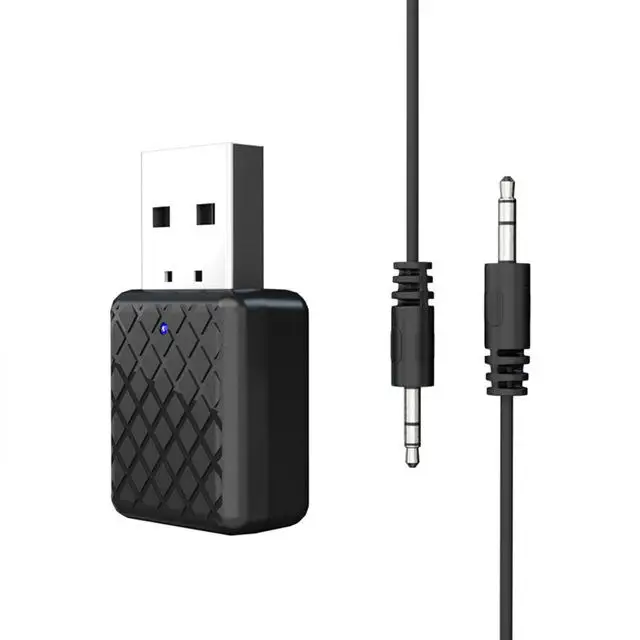

Item type: Bluetooth 5.0 Audio Transmitter

NOTED :

1. Our device only can be used as bluetooth receiver or bluetooth transmitter. Can not be used as a WiFi/Wireless adapter to connect with WiFi network and dose not work with keyboard / mouse.

2. When you use our device to be as bluetooth transmitter or bluetooth receiver , you need to use 3.5mm AUX cable to connect your device with our device(because the 3.5mm AU X cable was used for audio input or output), then it can be into the pairing mode,and you can pair with your devices.

Model: KN320

Technologies: BT5.0, A2DP, AVRCP (receiver mode only)

Operation Range: Up to 10m / 33ft (without any blocking objects)

Pairing name(Receiver mode ):KN320

Transmitter mode: red LED light is on

Receiver mode: blue LED light is on

Dimensions: 32mm*17mm*8.5mm

Mode switching:

a)First plug the product into the USB port to power on.

b)When the time after power-on is within 10 seconds, you only need to re-plug once to switch modes.

c)When the time after power-on exceeds 10 seconds, you need to re-plug twice to switch modes.

Note: This product has been used for more than 10 seconds and will remember the mode. It will be the last mode when it is powerd on next time.

There is no built-in battery, and it is powered by DC 5V usb interface:

A.Insert usb power, the red light is on in the transmitting mode, the red light flashes when pairing, and the red light is always on after the pairing succeeds.

B.Insert usb to power on, the receiving mode is blue light, the blue light flashes when pairing, the blue light is always on after pairing is successful.

How to use:

a)Receiving mode: used in home audio, wired headphones, car audio, etc. without Bluetooth.

How to use: Power on the product and confirm the receiving mode (blue light), open the Bluetooth settings in the phone and tablet, search for the pairing name: KN323 for pairing, connect the home audio, headphones, car audio with 3.5 audio cable Wait.

b)Transmitting mode: Use on TVs, computers, mp3s, etc. without Bluetooth. There is no need to install the driver, but it needs to be connected with 3.5 audio cable. It can only transmit audio and cannot transmit data.

How to use: Power on the product and confirmthe transmitting mode (red light). The product will automatically search for the Bluetooth headset, Bluetooth audio, Bluetooth receiver and other devices next to it.

The KN320 just 32mm (1.26”) across and weighs only 3.2g (0.11oz), but has got powerful wireless audio streaming capabilities. Slip this transmitter & receiver into your backpack or laptop bag and take it on-the-go without the slightest effort.

Broad Compatibility: With the included 3.5mm cable, this Receiver Transmitter adapter can widely be used on your computer, laptop, home stereo system, headphone, smartphone, Mp3 player, CD player, etc.

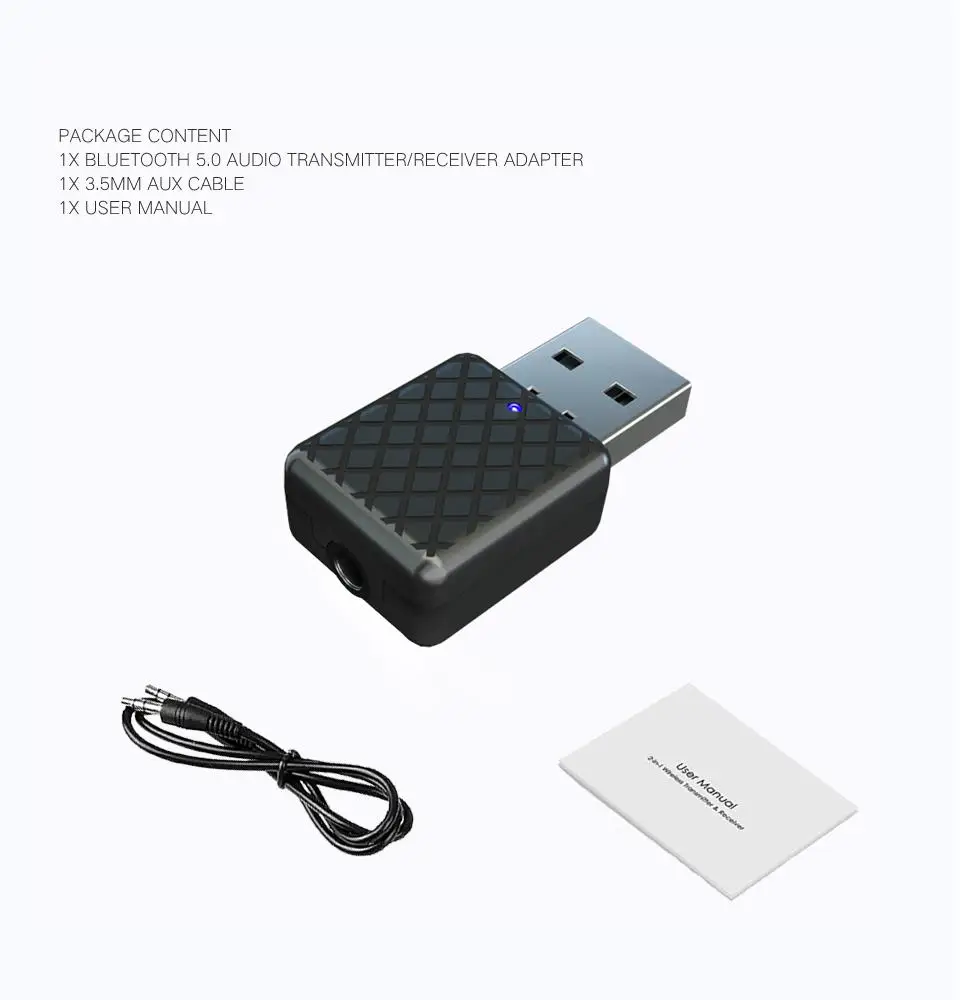

Package Include:

1x Bluetooth 5.0 Audio Transmitter/Receiver Adapter

1x 3.5mm Aux Cable

1x User Manual

Note:

The colors deviation might differ due to different monitor settings.
